TG2520SMN專用于5G通訊設備X1G005421003027

來源：http://www.sdyoujian.cn 作者：億金電子 2022年09月15

溫補晶振即溫度補償晶體振蕩器（TCXO），是通過附加的溫度補償電路使由周?chē)鷾囟茸兓a(chǎn)生的振蕩頻率變化量削減的一種石英晶體振蕩器。

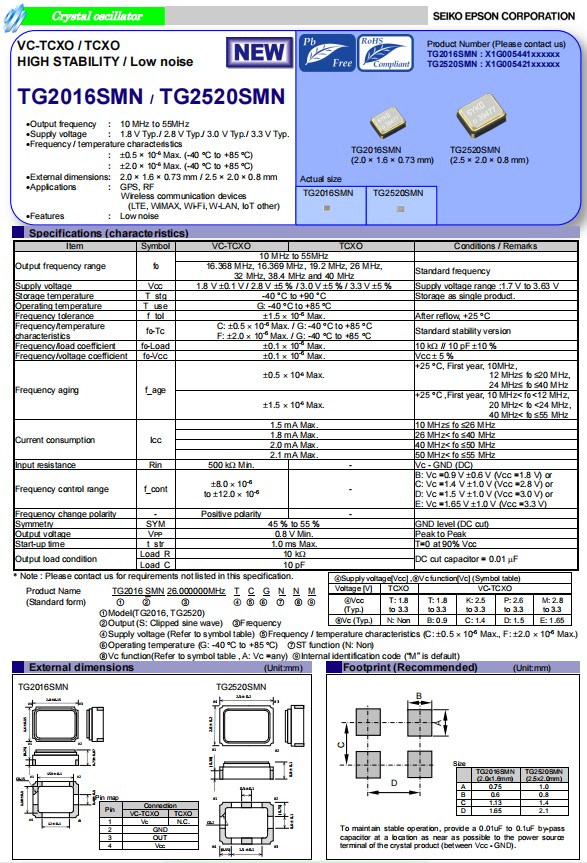

日本進口愛普生晶振TG2520SMN是一款TCXO溫補晶體振蕩器，小體積晶振尺寸2.5x2.0mm有源晶振，四腳貼片晶振，電源電壓1.8V,2.8V,3.0V,3.3V，頻率范圍10MHz至55MHz，具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低電平，低相位噪聲等特點，被廣泛應用于5G通訊設備、工業控制、車載、消費電子、光電技術及各種變頻調速設備等通訊設備。
TG2520SMN專用于5G通訊設備,X1G005421021227,溫補晶體振蕩器

產品編碼	石英晶振	頻率	尺寸	輸出波
X1G005421002927	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421003027	TG2520SMN	12.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421003727	TG2520SMN	16.384000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421003827	TG2520SMN	16.384000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020127	TG2520SMN	16.368000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020227	TG2520SMN	16.369000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020327	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020427	TG2520SMN	26.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020527	TG2520SMN	32.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020627	TG2520SMN	38.400000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020727	TG2520SMN	40.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421020827	TG2520SMN	16.000000MHz	2.50x2.00x0.80mm	TCXO晶振
X1G005421021127	TG2520SMN	20.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421021227	TG2520SMN	24.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421021327	TG2520SMN	25.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421021427	TG2520SMN	27.000000MHz	2.50x2.00x0.80mm	Clippedsinewave

X1G005421021527	TG2520SMN	30.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421021627	TG2520SMN	48.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421022027	TG2520SMN	52.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421022127	TG2520SMN	27.600000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421022227	TG2520SMN	50.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030127	TG2520SMN	16.368000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030227	TG2520SMN	16.369000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030327	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030427	TG2520SMN	26.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030527	TG2520SMN	32.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030627	TG2520SMN	38.400000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030727	TG2520SMN	40.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421030827	TG2520SMN	16.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421031127	TG2520SMN	20.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421031227	TG2520SMN	24.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421031327	TG2520SMN	25.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421031427	TG2520SMN	27.000000MHz	2.50x2.00x0.80mm	Clippedsinewave
X1G005421031527	TG2520SMN	30.000000MHz	2.50x2.00x0.80mm	Clippedsinewave

TG2520SMN專用于5G通訊設備,X1G005421021227,溫補晶體振蕩器
削波正玄波(Clipped Sine Wave)是有源晶振輸出方式的一種,相比方波的諧波分量少很多,但驅動能力較弱,在負載10K/10PF時Vp-p為0.8Vmin.通常為SMD7050,SMD5032,SMD3225等封裝的表貼溫補晶振使用的輸出波形.當然,有源晶振還有CMOS,TTL,ECL,LVDS,正玄波等輸出方式,這些輸出邏輯方式也各有優缺點,至于如何利用它們我們卻是不得而知.所以日本愛普生晶振就推出了相關的技術支持文檔,明確指出應當如何在電路設計中應用削頂正玄波.
