首頁歐美晶振ILSI晶振ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振

  • 頻率：32MHz
  • 尺寸：3.2×2.5mm
  • 應　用： 美國進口晶振,ILSI晶振,ISA16有源晶振,貼片石英晶振,ISA16-32AH-32.000 MHz晶振,3225mm晶振,石英晶體振蕩器,四腳封裝晶振,頻率32MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,小體積晶振,高品質晶振,高穩定性晶振...
  • RoHS RoHS2


ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振,美國進口晶振,ILSI晶振,ISA16有源晶振,貼片石英晶振,ISA16-32AH-32.000 MHz晶振,3225mm晶振,石英晶體振蕩器,四腳封裝晶振,頻率32MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,小體積晶振,高品質晶振,高穩定性晶振,照相機晶振,微處理器晶振,網絡附屬存儲晶振,數字設備晶振.
ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振特點
●通過AEC-Q200認證
●通過TS16949認證的生產線
●LVCMOS兼容輸出
●行業標準包裝3.2mm x 2.5mm
●五種電源電壓選擇，1.8V, 2.5V, 2.8V, 3.0V或3.3V
●無鉛、無鹵、無銻
●符合RoHS和REACH標準

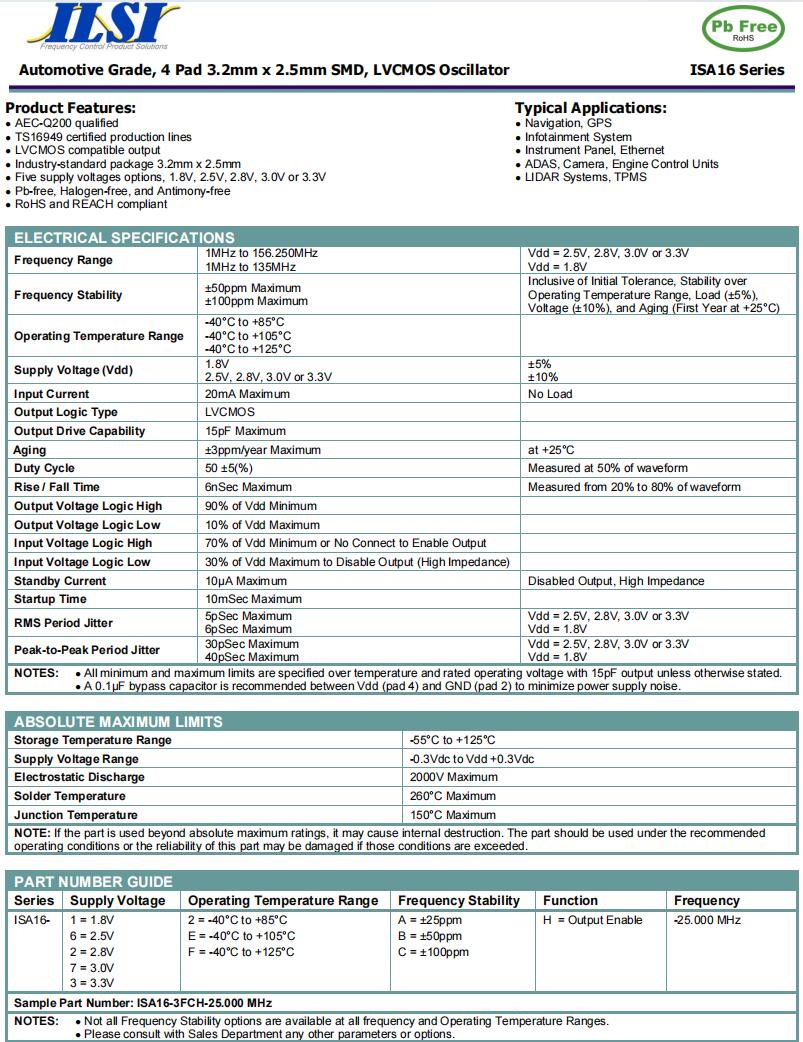

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振規格表
Frequency Range 32 MHz
Frequency Stability ±50ppm Maximum
±100ppm Maximum		 Inclusive of Initial Tolerance, Stability over  Operating Temperature Range, Load (±5%), Voltage (±10%), and Aging (First Year at +25°C)
Operating Temperature Range -40°C to +85°C
-40°C to +105°C
-40°C to +125°C
Supply Voltage (Vdd) 1.8V
2.5V, 2.8V, 3.0V or 3.3V		 ±5%
±10%
Input Current 20mA Maximum No Load
Output Logic Type LVCMOS
Output Drive Capability 15pF Maximum
Aging ±3ppm/year Maximum at +25°C
Duty Cycle 50 ±5(%) Measured at 50% of waveform
Rise / Fall Time 6nSec Maximum Measured from 20% to 80% of waveform
Output Voltage Logic High 90% of Vdd Minimum
Output Voltage Logic Low 10% of Vdd Maximum
Input Voltage Logic High 70% of Vdd Minimum or No Connect to Enable Output
Input Voltage Logic Low 30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current 10µA Maximum Disabled Output, High Impedance
Startup Time 10mSec Maximum
RMS Period Jitter 5pSec Maximum
6pSec Maximum		 Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V
Peak-to-Peak Period Jitter 30pSec Maximum
40pSec Maximum		 Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V
NOTES:   ● All minimum and maximum limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.
                         ● A 0.1µF bypass capacitor is recommended between Vdd (pad 4) and GND (pad 2) to minimize power supply noise.

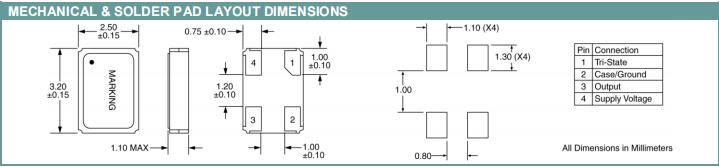

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振尺寸圖

原廠編碼 品牌 型號 工作溫度 頻率 頻率容差 負載
HC49USM-BA1F12- 24.000 MHz ILSI HC49USM 0°C ~ 70°C 24 MHz ±50ppm 12 pF
HC49USM-BA3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±50ppm 18 pF
HC49USM-BA5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±50ppm 18 pF
HC49USM-BB3F10- 13.52313 MHz ILSI HC49USM -20°C ~ 70°C 13.52313 MHz ±50ppm 10 pF
HC49USM-BB5F20- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±50ppm 20 pF
HC49USM-FB1F18- 8.000 MHz ILSI HC49USM 0°C ~ 70°C 8 MHz ±30ppm 18 pF
HC49USM-FB1F18- 28.224 MHz ILSI HC49USM 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
HC49USM-FB1F20- 3.6864 MHz ILSI HC49USM 0°C ~ 70°C 3.6864 MHz ±30ppm 20 pF
HC49USM-FB2F30- 4.000 MHz ILSI HC49USM -10°C ~ 60°C 4 MHz ±30ppm 30 pF
HC49USM-FB2F30- 8.000 MHz ILSI HC49USM -10°C ~ 60°C 8 MHz ±30ppm 30 pF
HC49USM-FB3F10- 9.650 MHz ILSI HC49USM -20°C ~ 70°C 9.65 MHz ±30ppm 10 pF
HC49USM-FB3F18- 4.545 MHz ILSI HC49USM -20°C ~ 70°C 4.545 MHz ±30ppm 18 pF
HC49USM-FB3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
HC49USM-FB3F18- 25.175 MHz ILSI HC49USM -20°C ~ 70°C 25.175 MHz ±30ppm 18 pF
HC49USM-FB3F20- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 20 pF
HC49USM-FB3F20- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 20 pF
HC49USM-FB3F20- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 20 pF
HC49USM-FB5F18- 3.579545 MHz ILSI HC49USM -40°C ~ 85°C 3.579545 MHz ±30ppm 18 pF
HC49USM-FB5F18- 4.194304 MHz ILSI HC49USM -40°C ~ 85°C 4.194304 MHz ±30ppm 18 pF
HC49USM-FB5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
HC49USM-FB5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
HC49USM-FB5F20- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 20 pF
HC49USM-FB5F20- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 20 pF
HC49USM-FB5F20- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 20 pF
HC49USM-FB5F20- 12.288 MHz ILSI HC49USM -40°C ~ 85°C 12.288 MHz ±30ppm 20 pF
HC49USM-FB5F20- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 20 pF
HC49USM-FF3F18- 3.6864 MHz ILSI HC49USM -20°C ~ 70°C 3.6864 MHz ±30ppm 18 pF
HC49USM-FF3F18- 4.000 MHz ILSI HC49USM -20°C ~ 70°C 4 MHz ±30ppm 18 pF
HC49USM-FF3F18- 4.9152 MHz ILSI HC49USM -20°C ~ 70°C 4.9152 MHz ±30ppm 18 pF
HC49USM-FF3F18- 6.000 MHz ILSI HC49USM -20°C ~ 70°C 6 MHz ±30ppm 18 pF
HC49USM-FF3F18- 6.144 MHz ILSI HC49USM -20°C ~ 70°C 6.144 MHz ±30ppm 18 pF
HC49USM-FF3F18- 7.3728 MHz ILSI HC49USM -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
HC49USM-FF3F18- 8.000 MHz ILSI HC49USM -20°C ~ 70°C 8 MHz ±30ppm 18 pF
HC49USM-FF3F18- 11.0592 MHz ILSI HC49USM -20°C ~ 70°C 11.0592 MHz ±30ppm 18 pF
HC49USM-FF3F18- 12.000 MHz ILSI HC49USM -20°C ~ 70°C 12 MHz ±30ppm 18 pF
HC49USM-FF3F18- 14.7456 MHz ILSI HC49USM -20°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
HC49USM-FF3F18- 16.000 MHz ILSI HC49USM -20°C ~ 70°C 16 MHz ±30ppm 18 pF
HC49USM-FF3F18- 18.432 MHz ILSI HC49USM -20°C ~ 70°C 18.432 MHz ±30ppm 18 pF
HC49USM-FF3F18- 20.000 MHz ILSI HC49USM -20°C ~ 70°C 20 MHz ±30ppm 18 pF
HC49USM-FF3F18- 25.000 MHz ILSI HC49USM -20°C ~ 70°C 25 MHz ±30ppm 18 pF
HC49USM-FF3F18- 9.909116 MHz ILSI HC49USM -20°C ~ 70°C 9.909116 MHz ±30ppm 18 pF
HC49USM-FF5F10- 9.81713 MHz ILSI HC49USM -40°C ~ 85°C 9.81713 MHz ±30ppm 10 pF
HC49USM-FF5F18- 3.6864 MHz ILSI HC49USM -40°C ~ 85°C 3.6864 MHz ±30ppm 18 pF
HC49USM-FF5F18- 3.93216 MHz ILSI HC49USM -40°C ~ 85°C 3.93216 MHz ±30ppm 18 pF
HC49USM-FF5F18- 4.000 MHz ILSI HC49USM -40°C ~ 85°C 4 MHz ±30ppm 18 pF
HC49USM-FF5F18- 6.000 MHz ILSI HC49USM -40°C ~ 85°C 6 MHz ±30ppm 18 pF
HC49USM-FF5F18- 7.3728 MHz ILSI HC49USM -40°C ~ 85°C 7.3728 MHz ±30ppm 18 pF
HC49USM-FF5F18- 8.000 MHz ILSI HC49USM -40°C ~ 85°C 8 MHz ±30ppm 18 pF
HC49USM-FF5F18- 10.000 MHz ILSI HC49USM -40°C ~ 85°C 10 MHz ±30ppm 18 pF
HC49USM-FF5F18- 11.0592 MHz ILSI HC49USM -40°C ~ 85°C 11.0592 MHz ±30ppm 18 pF
HC49USM-FF5F18- 12.000 MHz ILSI HC49USM -40°C ~ 85°C 12 MHz ±30ppm 18 pF
HC49USM-FF5F18- 14.7456 MHz ILSI HC49USM -40°C ~ 85°C 14.7456 MHz ±30ppm 18 pF
HC49USM-FF5F18- 16.000 MHz ILSI HC49USM -40°C ~ 85°C 16 MHz ±30ppm 18 pF
HC49USM-FF5F18- 18.432 MHz ILSI HC49USM -40°C ~ 85°C 18.432 MHz ±30ppm 18 pF
HC49USM-FF5F18- 20.000 MHz ILSI HC49USM -40°C ~ 85°C 20 MHz ±30ppm 18 pF
HC49USM-FF5F18- 25.000 MHz ILSI HC49USM -40°C ~ 85°C 25 MHz ±30ppm 18 pF
IL3X-HX5F12.5- 32.768 KHz ILSI IL3X -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F12.5- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
IL3X2-HX5F6- 32.768 KHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
IL3X2-HX5F7- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
IL3X2-HX5F9- 32.768 kHz ILSI IL3X2 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
ILCX04-FB1F18- 27.000 MHz ILSI ILCX04 0°C ~ 70°C 27 MHz ±30ppm 18 pF
ILCX04-FB1F18- 28.224 MHz ILSI ILCX04 0°C ~ 70°C 28.224 MHz ±30ppm 18 pF
ILCX04-FB3F18- 7.3728 MHz ILSI ILCX04 -20°C ~ 70°C 7.3728 MHz ±30ppm 18 pF
ILCX04-FB5F20- 22.1184 MHz ILSI ILCX04 -40°C ~ 85°C 22.1184 MHz ±30ppm 20 pF
ILCX04-FB5F20- 25.000 MHz ILSI ILCX04 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
ILCX04-FB5F20- 6.000 MHz ILSI ILCX04 -40°C ~ 85°C 6 MHz ±30ppm 20 pF
ILCX04-FF1F20- 8.000 MHz ILSI ILCX04 0°C ~ 70°C 8 MHz ±30ppm 20 pF
ILCX04-JH5F18- 8.000 MHz ILSI ILCX04 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
ILCX07-BB3F12- 16.000 MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±50ppm 12 pF
ILCX07-FB3F13-16.000MHz ILSI ILCX07 -20°C ~ 70°C 16 MHz ±30ppm 13 pF
ILCX07-FB5F12- 20.000 MHz ILSI ILCX07 -40°C ~ 85°C 20 MHz ±30ppm 12 pF
ILCX07-FF1F20- 25.000 MHz ILSI ILCX07 0°C ~ 70°C 25 MHz ±30ppm 20 pF
ILCX07-FF3F16- 9.984 MHz ILSI ILCX07 -20°C ~ 70°C 9.984 MHz ±30ppm 16 pF
ILCX07-FF3F16- 10.78125 MHz ILSI ILCX07 -20°C ~ 70°C 10.78125 MHz ±30ppm 16 pF
ILCX07-FF3F16- 13.560 MHz ILSI ILCX07 -20°C ~ 70°C 13.56 MHz ±30ppm 16 pF
ILCX07-FF5F12.5-8.000MHz ILSI ILCX07 -40°C ~ 85°C 8 MHz ±30ppm 12 pF
ILCX07-FF5F18- 24.000 MHz ILSI ILCX07 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX07-FF5F18- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX07-FF5F20- 25.000 MHz ILSI ILCX07 -40°C ~ 85°C 25 MHz ±30ppm 20 pF
ILCX07-HB3F18- 20.000 MHz ILSI ILCX07 -20°C ~ 70°C 20 MHz ±20ppm 18 pF
ILCX07-HB3F18- 27.000 MHz ILSI ILCX07 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
ILCX07-JJ2F10- 8.000 MHz ILSI ILCX07 -10°C ~ 60°C 8 MHz ±10ppm 10 pF
ILCX07-JJ3F10- 12.000 MHz ILSI ILCX07 -20°C ~ 70°C 12 MHz ±10ppm 10 pF
ILCX07A-FB1F12- 18.432 MHz ILSI ILCX07A 0°C ~ 70°C 18.432 MHz ±30ppm 12 pF
ILCX07A-FB3F18- 12.000 MHz ILSI ILCX07A -20°C ~ 70°C 12 MHz ±30ppm 18 pF
ILCX07B-FB1F18- 14.7456 MHz ILSI ILCX07B 0°C ~ 70°C 14.7456 MHz ±30ppm 18 pF
ILCX07B-FB1F18-27.120MHz ILSI ILCX07B 0°C ~ 70°C 27.12 MHz ±30ppm 18 pF
ILCX07B-FB5F20- 29.4912 MHz ILSI ILCX07B -40°C ~ 85°C 29.4912 MHz ±30ppm 20 pF
ILCX08-HH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±20ppm 18 pF
ILCX08-JG5F18- 24.000 MHz ILSI ILCX08 -40°C ~ 85°C 24 MHz ±10ppm 18 pF
ILCX08-JH5F18- 8.000 MHz ILSI ILCX08 -40°C ~ 85°C 8 MHz ±10ppm 18 pF
ILCX08-JH5F18- 16.000 MHz ILSI ILCX08 -40°C ~ 85°C 16 MHz ±10ppm 18 pF
ILCX13-BB5F10- 12.000000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±50ppm 10 pF
ILCX13-BB5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±50ppm 10 pF
ILCX13-BB5F10- 49.152 MHz ILSI ILCX13 -40°C ~ 85°C 49.152 MHz ±50ppm 10 pF
ILCX13-BH3F18- 12.000 MHZ ILSI ILCX13 -20°C ~ 70°C 12 MHz ±50ppm 18 pF
ILCX13-FB5F15- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 15 pF
ILCX13-FB5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
ILCX13-FB5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX13-FB5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX13-FB5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX13-FF3F10- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±30ppm 10 pF
ILCX13-FF3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±30ppm 8 pF
ILCX13-FF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±30ppm 18 pF
ILCX13-FF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX13-FF5F18- 20.000 MHz ILSI ILCX13 -40°C ~ 85°C 20 MHz ±30ppm 18 pF
ILCX13-FF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±30ppm 18 pF
ILCX13-FF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX13-FF5F18- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±30ppm 18 pF
ILCX13-HB3F18- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±20ppm 18 pF
ILCX13-HB3F18- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±20ppm 18 pF
ILCX13-HF3F18- 12.000 MHz ILSI ILCX13 -20°C ~ 70°C 12 MHz ±20ppm 18 pF
ILCX13-HF3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
ILCX13-HF5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 10 pF
ILCX13-HF5F12- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 12 pF
ILCX13-HF5F12- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 12 pF
ILCX13-HF5F18- 12.000 MHz ILSI ILCX13 -40°C ~ 85°C 12 MHz ±20ppm 18 pF
ILCX13-HF5F18- 16.000 MHz ILSI ILCX13 -40°C ~ 85°C 16 MHz ±20ppm 18 pF
ILCX13-HF5F18- 22.1184 MHz ILSI ILCX13 -40°C ~ 85°C 22.1184 MHz ±20ppm 18 pF
ILCX13-HF5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
ILCX13-HF5F18- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±20ppm 18 pF
ILCX13-HF5F18- 48.000 MHz ILSI ILCX13 -40°C ~ 85°C 48 MHz ±20ppm 18 pF
ILCX13-HG5F19 -50.2232 MHz ILSI ILCX13 -40°C ~ 85°C 50.2232 MHz ±20ppm 19 pF
ILCX13-HH3F18- 25.000 MHz ILSI ILCX13 -20°C ~ 70°C 25 MHz ±20ppm 18 pF
ILCX13-HH3F18- 27.000 MHz ILSI ILCX13 -20°C ~ 70°C 27 MHz ±20ppm 18 pF
ILCX13-HH3F8- 10.77938 MHz ILSI ILCX13 -20°C ~ 70°C 10.77938 MHz ±20ppm 8 pF
ILCX13-HH3F8- 10.78125 MHz ILSI ILCX13 -20°C ~ 70°C 10.78125 MHz ±20ppm 8 pF
ILCX13-HH5F18- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±20ppm 18 pF
ILCX13-IH1F12- 24.000 MHz ILSI ILCX13 0°C ~ 70°C 24 MHz ±15ppm 12 pF
ILCX13-IH1F12- 25.000 MHz ILSI ILCX13 0°C ~ 70°C 25 MHz ±15ppm 12 pF
ILCX13-II3F8- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±15ppm 8 pF
ILCX13-II5F8- 40.000 MHz ILSI ILCX13 -40°C ~ 85°C 40 MHz ±15ppm 8 pF
ILCX13-JH5F8-39.000 MHz ILSI ILCX13 -40°C ~ 85°C 39 MHz ±10ppm 8 pF
ILCX13-JI1F9- 32.000 MHz ILSI ILCX13 0°C ~ 70°C 32 MHz ±10ppm 9 pF
ILCX13-JI5F10- 25.000 MHz ILSI ILCX13 -40°C ~ 85°C 25 MHz ±10ppm 10 pF
ILCX13-JI5F8- 32.000 MHz ILSI ILCX13 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
ILCX13-JI5F9- 24.000 MHz ILSI ILCX13 -40°C ~ 85°C 24 MHz ±10ppm 9 pF
ILCX13-JJ2F10-30.000 MHz ILSI ILCX13 -10°C ~ 60°C 30 MHz ±10ppm 10 pF
ILCX13-JJ2F7- 16.000 MHz ILSI ILCX13 -10°C ~ 60°C 16 MHz ±10ppm 7 pF
ILCX13-JJ3F10- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 10 pF
ILCX13-JJ3F10- 32.000 MHz ILSI ILCX13 -20°C ~ 70°C 32 MHz ±10ppm 10 pF
ILCX13-JJ3F16- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 16 pF
ILCX13-JJ3F4- 24.000 MHz ILSI ILCX13 -20°C ~ 70°C 24 MHz ±10ppm 4 pF
ILCX13-JJ3F9- 16.000 MHz ILSI ILCX13 -20°C ~ 70°C 16 MHz ±10ppm 9 pF
ILCX18-FF3F18- 25.000 MHz ILSI ILCX18 -20°C ~ 70°C 25 MHz ±30ppm 18 pF
ILCX18-FF5F18- 16.000 MHz ILSI ILCX18 -40°C ~ 85°C 16 MHz ±30ppm 18 pF
ILCX18-FF5F18- 25.000 MHz ILSI ILCX18 -40°C ~ 85°C 25 MHz ±30ppm 18 pF
ILCX18-JI5F8- 32.000 MHz ILSI ILCX18 -40°C ~ 85°C 32 MHz ±10ppm 8 pF
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
主站蜘蛛池模板： 亚洲一区二区三区在线 | 精品一久久香蕉国产线看观看下 | 成人ab片 | 狠狠色丁香婷婷综合欧美 | 国产精品免费看久久久麻豆 | 成人免费黄色小视频 | 亚洲不卡视频在线观看 | 青青爽| 一区二区精品久久 | 五月婷婷一区 | 激情国产白嫩美女在线观看 | 日本xoxoxo在线播放 | 国产高清国内精品福利 | 色视频在线免费观看 | 免费网站啪啪大全 | 欧美综合中文字幕久久 | 亚洲欧洲日韩国产aa色大片 | 精品视频一区二区三区在线播放 | 狠狠色丁香婷婷综合视频 | 久草免费在线视频 | 欧美一级成人影院免费的 | 国产一区二区播放 | 精品福利国产 | 精品91 | 图片专区亚洲 欧美 另类 | 老师邪恶影院a啦啦啦影院 老师在办公室被躁到白浆 老湿机午夜影院 | 国产乱码精品一区二区三区卡 | 国产大学生一级毛片绿象 | 精品成人一区二区三区免费视频 | 国产精品偷伦视频免费观看的 | 福利姬在线精品观看 | 黄色成人影院 | 97精品国产综合久久久久久欧美 | 免费香蕉依人在线视频久 | 欧美三级成人观看 | 日本毛片在线观看 | 午夜视频国产 | 99热这里只有精品88 | 天天爽夜夜爽夜夜爽精品视频 | 日韩中文字幕高清在线专区 | 色老头xxxxbbbb视频 |
