首頁歐美晶振Microchip晶振Microchip品牌-DSC1103CI1-075.0000-6G光纖通道晶振

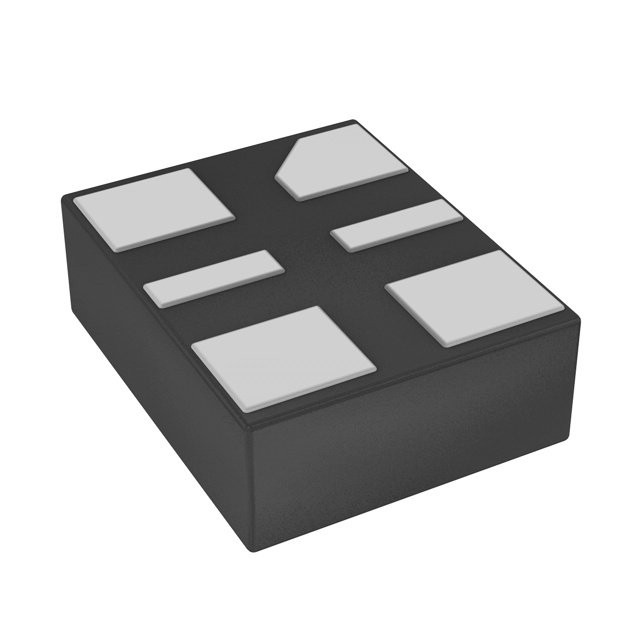

Microchip品牌-DSC1103CI1-075.0000-6G光纖通道晶振

  • 頻率：75MHz
  • 尺寸：3.2×2.5mm
  • 應　用： Microchip晶振,DSC1103差分晶振,DSC1103CI1-075.0000晶振,進口有源晶振,六腳貼片晶振,3225mm晶振,石英晶體振蕩器,LVDS輸出晶振,頻率75MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性50ppm,高穩定性晶振,小體積晶振,抗沖擊...
  • RoHS RoHS2

Microchip品牌-DSC1103CI1-075.0000-6G光纖通道晶振,Microchip晶振,DSC1103差分晶振,DSC1103CI1-075.0000晶振,進口有源晶振,六腳貼片晶振,3225mm晶振,石英晶體振蕩器,LVDS輸出晶振,頻率75MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性50ppm,高穩定性晶振,小體積晶振,抗沖擊晶振,6G光纖通道晶振,監控攝像頭晶振,高清視頻設備晶振,物聯網晶振.

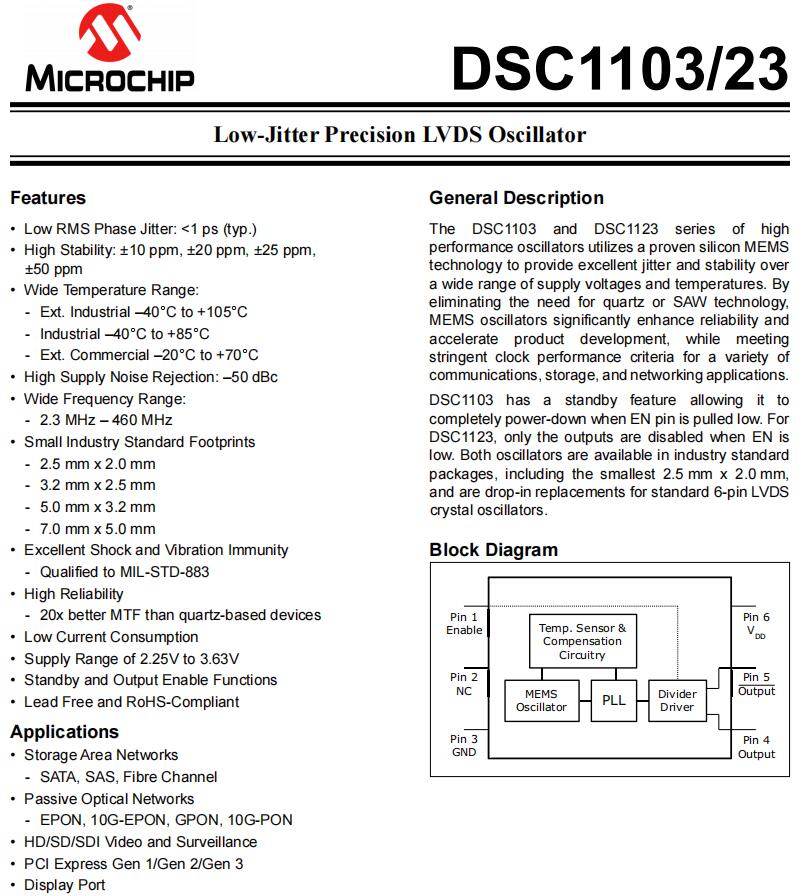

Microchip品牌-DSC1103CI1-075.0000-6G光纖通道晶振特點：
•低RMS相位抖動:<1 ps(類型)
•高穩定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍:
-Ext.工業:- 40°C至+105°C
-工業:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高電源噪聲抑制:-50 dBc
•寬頻率范圍:2.3 MHz至460 MHz
•小的行業標準足跡
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•低電流消耗
•電源范圍2.25至3.63V
•待機和輸出使能功能
•無鉛，符合RoHS標準

Microchip品牌-DSC1103CI1-075.0000-6G光纖通道晶振規格表
項目 規格說明 條件
額定頻率 75MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 3.3V
儲存溫度 -55℃~+150℃ 裸存
工作溫度 -40℃~ +85℃
頻率穩定度 ±50ppm 包括由初始公差、溫度和電源電壓引起的頻率變化
老化 ±5ppm 1 year @ +25°C
電流 32mA  Max
Output Enabled, RL = 100Ω
負載 15pf
輸出偏移電壓（Vos） 1.4V  Max
R = 100Ω Differential
增量失調電壓（ΔVOS） 50mV Max
-
輸出上升下降時間 200ps Max  20%/80%
RL = 50Ω,CL=15pF
占空比 48%~52%
輸入邏輯電平高（VIH） 0.75×VDD Min
Input  logic  high
輸入邏輯電平低（VIL） 0.25x VDD  Max
Input  logic  low
起始時間 5 ms Max T = +25°C
周期抖動  2.5psRMS
-
集成相位噪聲
2psRMS
12 kHz to 20 MHz @ 156.25 MHz

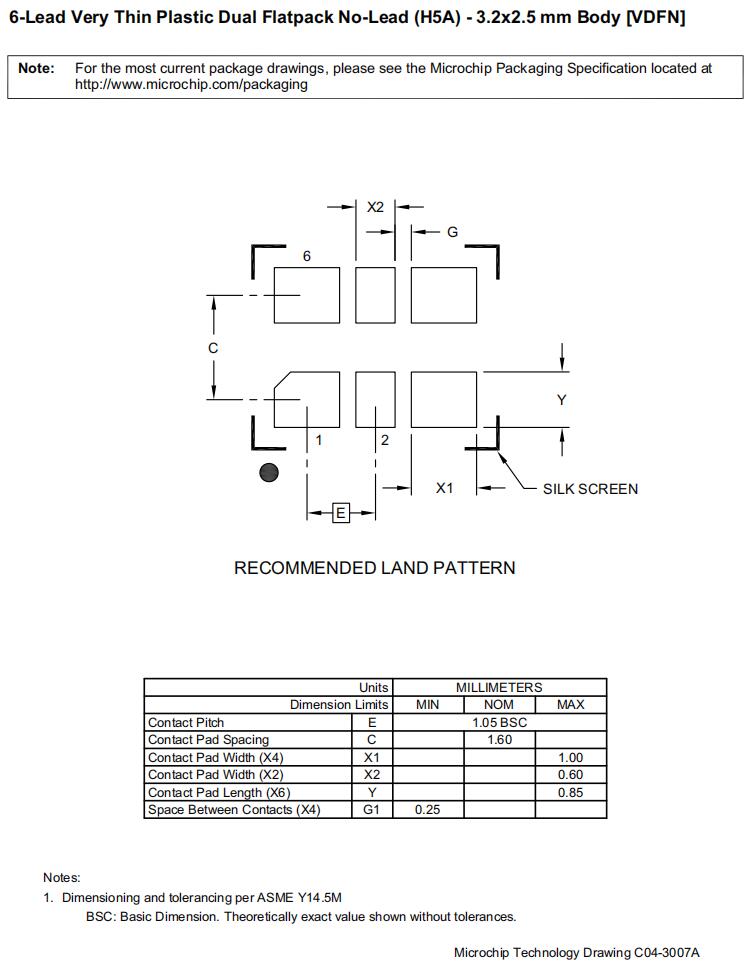

Microchip品牌-DSC1103CI1-075.0000-6G光纖通道晶振尺寸圖

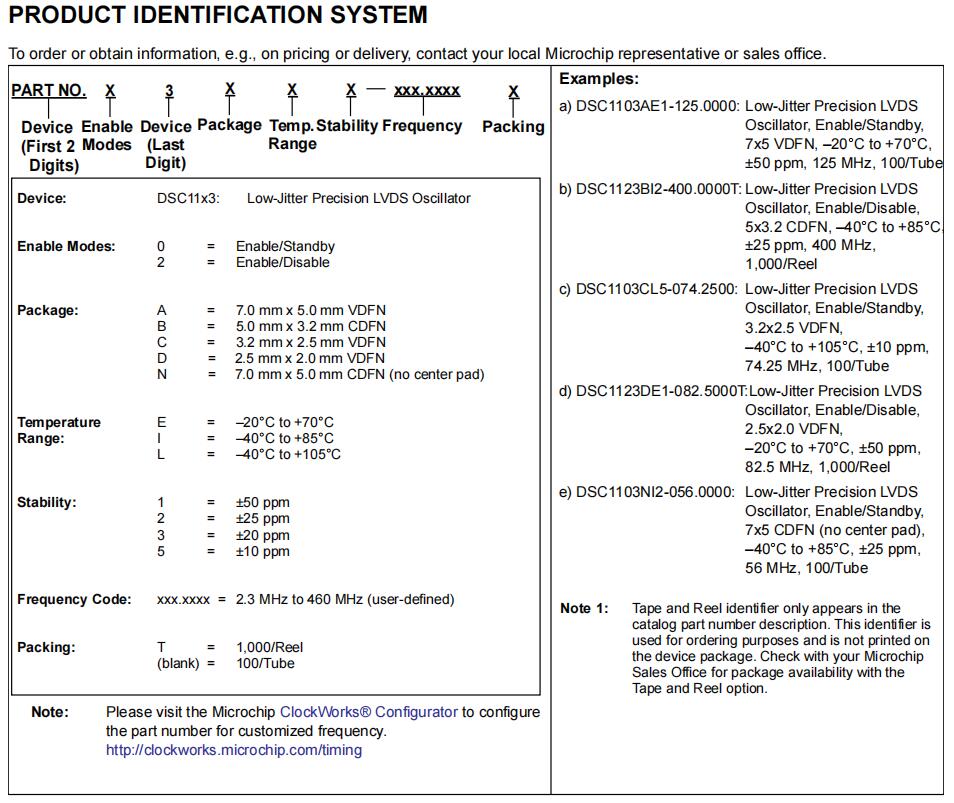

原廠代碼 晶振品牌 型號 頻率 電壓 尺寸
DSC1103DI2-312.5000 Microchip Technology DSC1103 312.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CI5-224.8200 Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CL5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BL5-062.5000 Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CL5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090T Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.2090 Microchip Technology DSC1103 233.209MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000 Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103CE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000 Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103BE1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AE1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-130.0000T Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CI2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI2-171.8181T Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BI2-135.0000T Microchip Technology DSC1103 135MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI2-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-171.8181 Microchip Technology DSC1103 171.8181MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL2-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333 Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000 Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000 Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-224.8200T Microchip Technology DSC1103 224.82MHz 2.25 V ~ 3.6V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103AI5-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL5-062.5000T Microchip Technology DSC1103 62.5MHz 2.25 V ~ 3.6V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103DL5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DL5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060 Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0060T Microchip Technology DSC1103 125.006MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BE1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103AI1-112.0000 Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-112.0000T Microchip Technology DSC1103 112MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE2-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000 Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-012.0000T Microchip Technology DSC1103 12MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-025.0000T Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-074.2500 Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-074.2500T Microchip Technology DSC1103 74.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000 Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI1-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300T Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333T Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500T Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000T Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000T Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-120.0000T Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI2-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000T Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800T Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000T Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000T Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000T Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500T Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-233.3333T Microchip Technology DSC1103 233.3333MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500T Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103AE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3300 Microchip Technology DSC1103 83.33MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-083.3333 Microchip Technology DSC1103 83.3333MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-106.2500 Microchip Technology DSC1103 106.25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-125.0000 Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE1-300.0000 Microchip Technology DSC1103 300MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-250.0000 Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BE1-075.0000 Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-074.2129 Microchip Technology DSC1103 74.2129MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-120.0000 Microchip Technology DSC1103 120MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE1-212.5000 Microchip Technology DSC1103 212.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE2-168.5000 Microchip Technology DSC1103 168.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-122.8800 Microchip Technology DSC1103 122.88MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-160.0000 Microchip Technology DSC1103 160MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-166.0000 Microchip Technology DSC1103 166MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-244.0000 Microchip Technology DSC1103 244MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-156.2500 Microchip Technology DSC1103 156.25MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DE1-148.2500 Microchip Technology DSC1103 148.25MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DE1-148.5000 Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103BL1-100.0000T Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CE5-150.0000T Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-148.5000T Microchip Technology DSC1103 148.5MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000T Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-019.2000T Microchip Technology DSC1103 19.2MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000T Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103NI2-400.0000T Microchip Technology DSC1103 400MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-025.0000 Microchip Technology DSC1103 25MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI2-130.0000 Microchip Technology DSC1103 130MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103BL1-100.0000 Microchip Technology DSC1103 100MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-150.0000 Microchip Technology DSC1103 150MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103BL1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1103CI2-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI2-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-180.0000 Microchip Technology DSC1103 180MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103DI1-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103DI2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1103NI1-200.0000 Microchip Technology DSC1103 200MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000 Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AE2-050.0000T Microchip Technology DSC1103 50MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI1-125.0000T Microchip Technology DSC1103 125MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103AI5-250.0000T Microchip Technology DSC1103 250MHz 2.25 V ~ 3.6 V 0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1103CE5-266.6667 Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CE5-266.6667T Microchip Technology DSC1103 266.6667MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-075.0000T Microchip Technology DSC1103 75MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-114.0000T Microchip Technology DSC1103 114MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1103CI5-140.0000T Microchip Technology DSC1103 140MHz 2.25 V ~ 3.6 V 0.126" L x 0.098" W (3.20mm x 2.50mm)
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
主站蜘蛛池模板： 青青青激情视频在线最新 | 国内精品久久久久久影院老狼 | 欧美日韩福利视频一区二区三区 | 日本三级带日本三级带黄首页 | 狠狠色狠狠干 | 亚洲精品老司机综合影院 | 亚洲精品乱码久久久久久v 亚洲精品乱码久久久久久麻豆 | 欧美精品成人久久网站 | 精品国产第一国产综合精品 | 欧美在线播放成人免费 | 五月一区二区久久综合天堂 | 日韩午夜在线观看 | 色综合网站在线 | 欧美高清精品 | 看a网址 | 日韩精品成人 | 中文精品久久久久国产网站 | 精品综合久久久久久88小说 | 一级毛片一级毛片免费毛片 | 五月综合视频 | 四虎影院网址大全 | 人人干操| 91色综合久久 | 国产综合久久久久影院 | 天天做天天看夜夜爽毛片 | 色婷婷欧美 | 亚洲综合亚洲综合网成人 | 亚洲国产天堂在线mv网站 | 日本美女视频韩国视频网站免费 | 国产精品香蕉在线观看不卡 | 奇米影视狠狠久久中文 | 亚洲欧洲日本在线观看 | 一区二区三区高清 | 亚洲国产精品成人午夜在线观看 | 99re这里只有热视频 | 一级做受视频免费是看美女 | 国产区视频在线 | 欧美日韩亚洲在线观看 | 亚洲国产精品激情在线观看 | 婷婷的久久五月综合先锋影音 | 奇米影视奇米四色888av |
