首頁歐美晶振微晶晶振Micro進口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G無線通信晶振

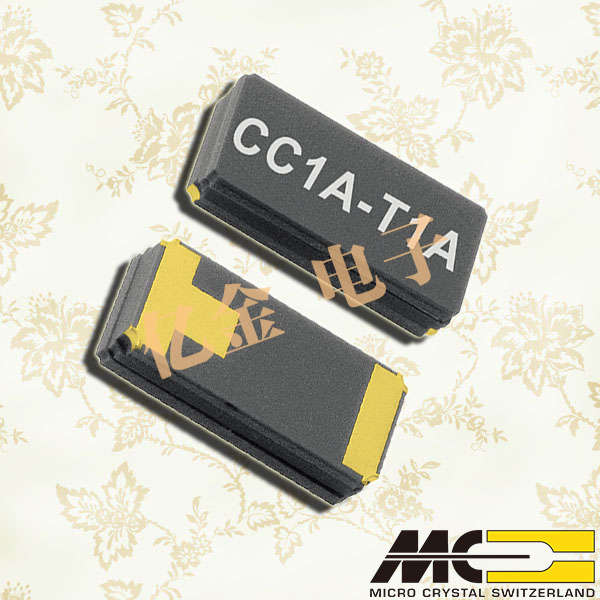

Micro進口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G無線通信晶振

頻率：18MHz
尺寸：8.0
應　用： Micro進口晶振,CC1A-T1A無源晶振,CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI晶振,8037mm晶振,貼片石英晶振,頻率18MHz,負載20pf,頻率穩定性100ppm,工作溫度-40~85°C,高穩定性晶振,高抗沖擊晶振,6G無線通信晶振,醫療保健...

Micro進口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G無線通信晶振,Micro進口晶振,CC1A-T1A無源晶振,CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI晶振,8037mm晶振,貼片石英晶振,頻率18MHz,負載20pf,頻率穩定性100ppm,工作溫度-40~85°C,高穩定性晶振,高抗沖擊晶振,6G無線通信晶振,醫療保健晶振,網絡系統晶振,健身設備晶振,電信晶振.
Micro進口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G無線通信晶振特點：
-金錫預制件的出色密封
-密封保證了高穩定性和低老化
-適用于擴展的工作溫度范圍
-在基本模式下運行
-高抗沖擊和振動
-100%無鉛，符合RoHS標準

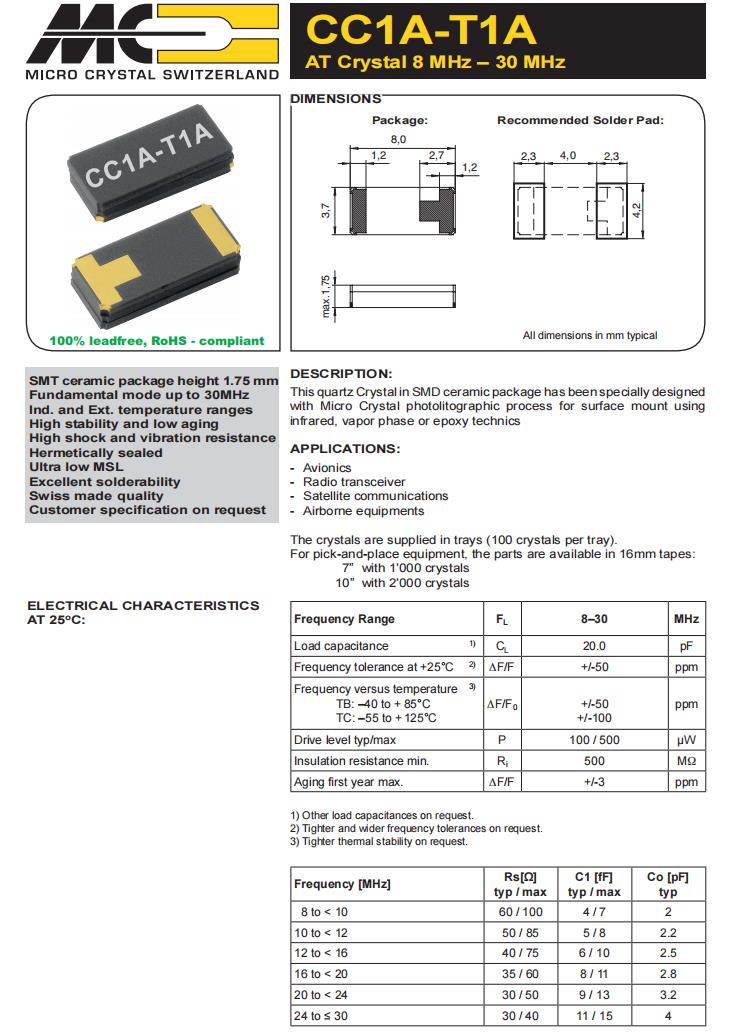

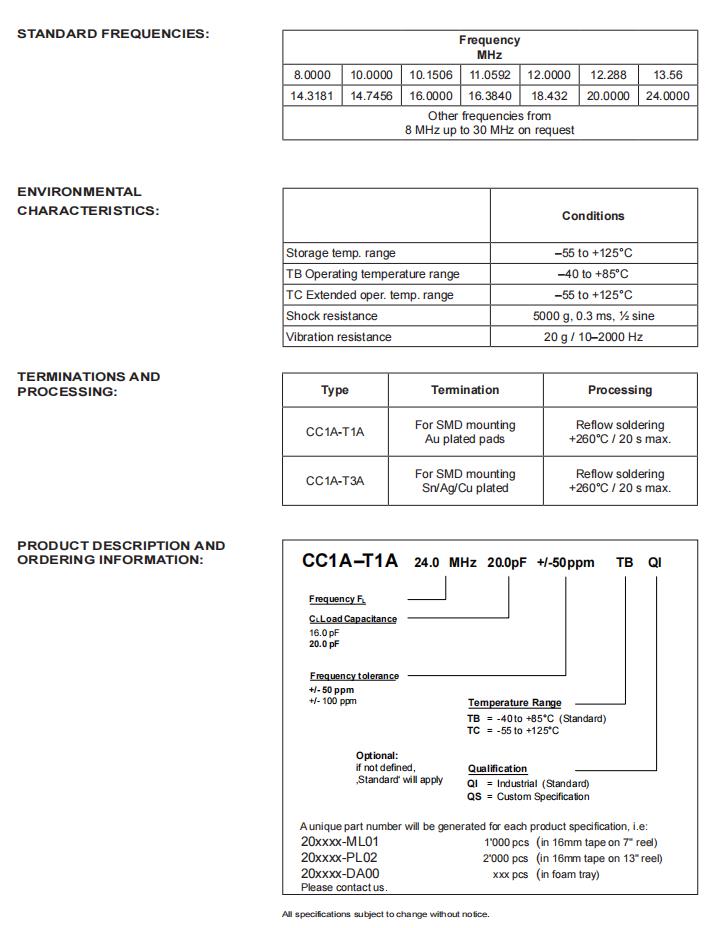

Micro進口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G無線通信晶振規格表

標準頻率	FL	18	MHz
負載	CL	20	pF
頻率容差	ΔF/F	±100	ppm
頻率溫度穩定性	ΔF/F0	±100	ppm
儲存溫度	T_stg	−40~+85	°C
工作溫度	T_use	−55~+125	°C
驅動電平典型/最大	P	100/250	μW
最小絕緣電阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

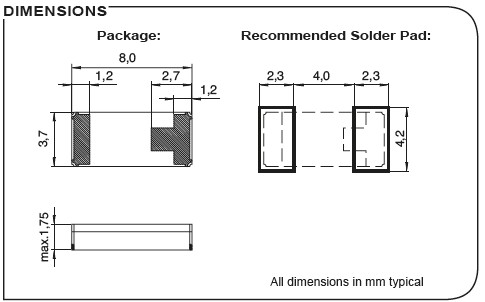

Micro進口晶振|CC1A-T1A-18.000MHz-20.0pF-100ppm-TA-QI|6G無線通信晶振尺寸圖

制造商零件編號	制造商	描述	產品類型
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
