首頁歐美晶振微晶晶振CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太網晶振

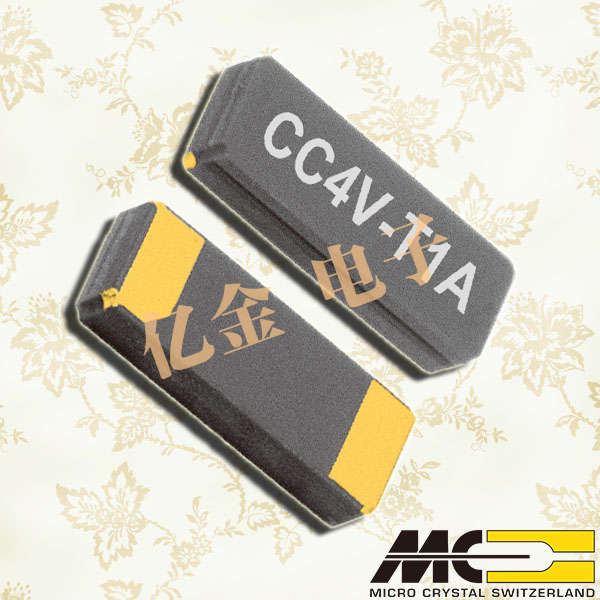

CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太網晶振

頻率：32.768KHz
尺寸：5.0×1.9mm
應　用： 瑞士微晶晶振,CC4V-T1A無源晶振,CC7V-T1A-32.768kHz-12.5pF-20ppm-TA-QC晶振,5019mm石英晶振,SMD晶體,金錫預制件的出色密封保證了高穩定性和低老化,適用于惡劣環境的成熟產品,頻率32.768KHz,負載12.5pF,6G以太網晶振,...

CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太網晶振,瑞士微晶晶振,CC4V-T1A無源晶振,CC7V-T1A-32.768kHz-12.5pF-20ppm-TA-QC晶振,5019mm石英晶體,SMD晶振,金錫預制件的出色密封保證了高穩定性和低老化,適用于惡劣環境的成熟產品,頻率32.768KHz,負載12.5pF,6G以太網晶振,醫用植入式晶振,工業設備晶振.
CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太網晶振特點：
卓越的密封與金-錫預制
適用于惡劣環境的成熟產品

高穩定性，低老化，密封保證

可擴展工作溫度范圍

高抗沖擊和抗振動

100%不含鉛，符合rohs標準

具備AEC-Q200汽車資質

CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太網晶振規格表

標準頻率	FL	32.768	KHz
負載	CL	12.5	pF
頻率容差	ΔF/F	±20	ppm
串聯電阻最大值	RS	50/65	kΩ
儲存溫度	T_stg	−55~+125	°C
工作溫度	T_use	−40~+85	°C
最大驅動電平	P	1	μW
最小絕緣電阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

CC4V-T1A-32.768kHz-12.5pF-20ppm-TA-QC,5019mm石英晶振,6G以太網晶振尺寸圖

制造商零件編號	制造商	描述	產品類型
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR	Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C	Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR	Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200	Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C	Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm	Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm	Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm	Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C	Crystals
