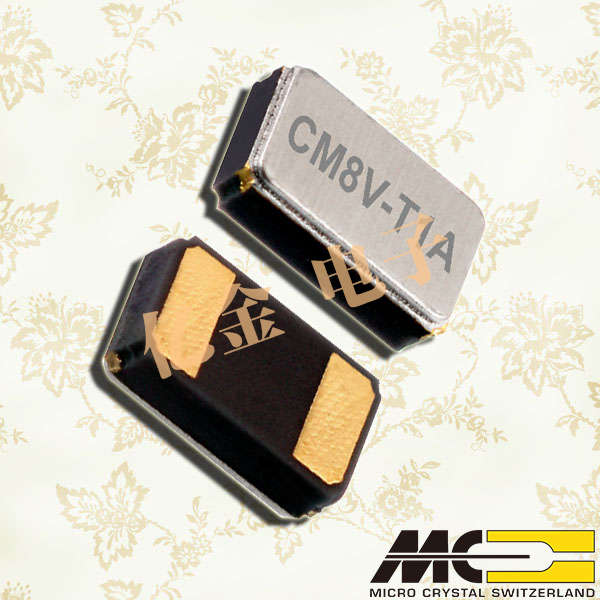

微晶晶振|CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA|KHZ CRYSTALS
- 頻率：32.768KHz
- 尺寸：2.0×1.2mm
- 應 用： 微晶晶振,CM8V-T1A石英晶振,無源晶振,CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA晶振,千赫晶體KHZ,2012mm晶振,二腳貼片晶振,頻率32.768KHz,負載9.0pF,工作溫度-40~125°C,頻率容差20ppm,耐高溫晶振,低老化晶振,超小尺寸晶...
-
-
微晶晶振|CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA|KHZ CRYSTALS,微晶晶振,CM8V-T1A石英晶振,無源晶振,CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA晶振,千赫晶體KHZ,2012mm晶振,二腳貼片晶振,頻率32.768KHz,負載9.0pF,工作溫度-40~125°C,頻率容差20ppm,耐高溫晶振,低老化晶振,超小尺寸晶振,信息娛樂系統晶振,全球衛星通信晶振,汽車控制模塊晶振,車載CCD相機晶振.
微晶晶振|CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA|KHZ CRYSTALS特點：
•超小尺寸，低輪廓，重量輕(4.6毫克)
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•可擴展工作溫度范圍
•高抗沖擊和抗振動
•100%不含鉛，符合ROHS標準
•具備AEC-Q200汽車資質

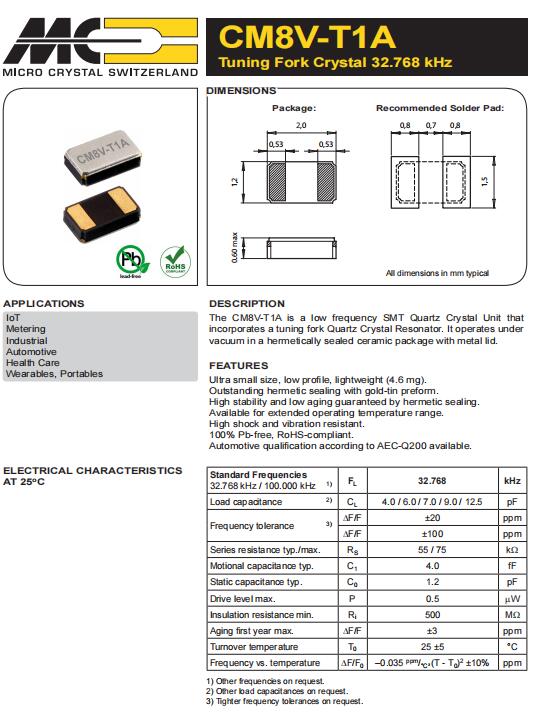

微晶晶振|CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA|KHZ CRYSTALS規格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Load capacitance
|
CL | 9.0 | pF |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Series resistance typ./max
|
RS | 55/70 | kΩ |
|
Motional capacitance typ.
|
C1
|
4.7 |
fF
|
|
Static capacitance typ.
|
C0
|
1.2 |
pF
|
|
Drive level max.
|
P | 0.5 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Turnover temperature
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/°C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TB Extended oper. temp. range
|
T_use | −40~+125 | °C |
.jpg)

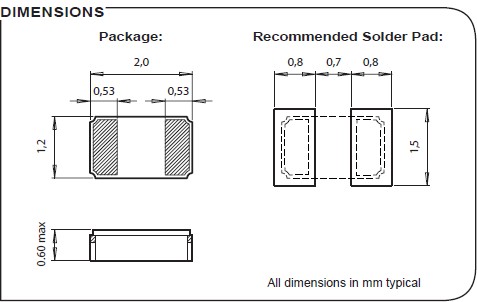

微晶晶振|CM8V-T1A-32.768kHz-9.0pF-20ppm-TB-QA|KHZ CRYSTALS尺寸圖
.JPG)
.jpg)
| 制造商零件編號 | 制造商 | 描述 |
| OV-7604-C7-32.768k-20PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| OV-0100-C7-100.000kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C |
| OM-0100-C8-100.00kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| 202684-MC03 | Micro Crystal | 晶體 32.768 kHz 4.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| 202273-EA00 | Micro Crystal | 標準時鐘振蕩器 128MHz 20ppm -55C +85C |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro Crystal | 晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+85C |
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro Crystal | 晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C |
| 200125-PL08 | Micro Crystal | 晶體 32.768kHz 7pF +/-10 PPM -40C +85C |
| OM-7605-C8-20PPM-TA-QA | Micro Crystal | 標準時鐘振蕩器 32.768kHz 20ppm 1.6-5.5V |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://www.sdyoujian.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
