首頁進口晶振百利通亞陶晶振DIODES-FL1000008-10MHz-20PPM-12PF--40°C~85°C

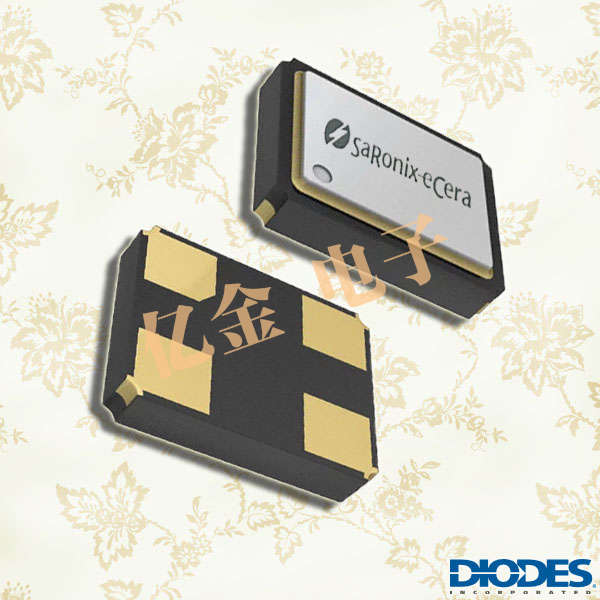

DIODES-FL1000008-10MHz-20PPM-12PF--40°C~85°C

  • 頻率：10MHz
  • 尺寸：3225mm

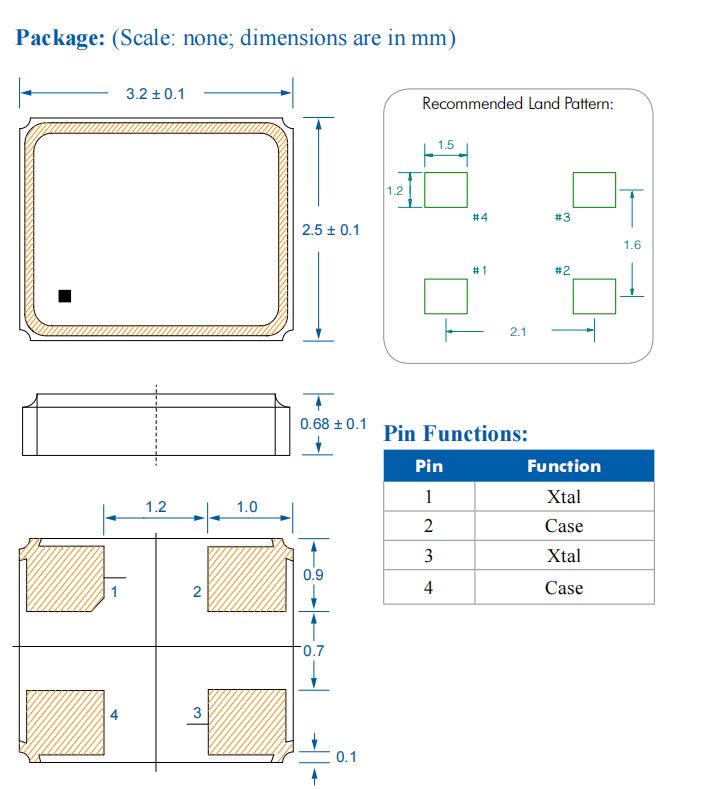

  • 應　用： DIODES-FL1000008-10MHz-20PPM-12PF--40C~85C，臺產SMD晶振，4墊FL系列接縫密封裝置包含一個亞微型at切割晶體諧振器，封裝在一個標準的3.2x2.5mm陶瓷封裝中。這些緊湊的晶體是理想的表面安裝在密集或小形狀因子PCB應用...
  • RoHS RoHS2

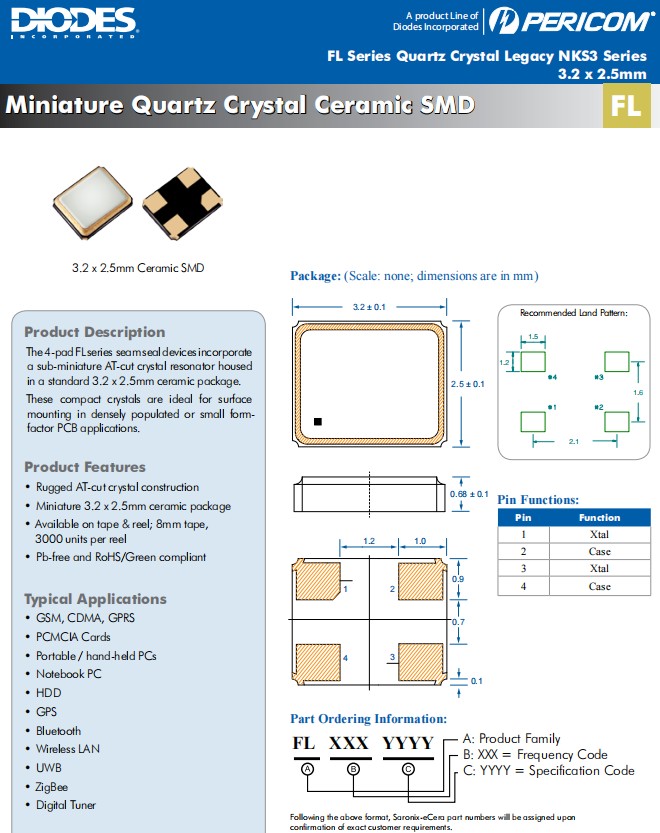

     DIODES-FL1000008-10MHz-20PPM-12PF--40°C ~ 85°C，臺產SMD晶振，4墊FL系列接縫密封裝置包含一個亞微型at切割晶體諧振器，封裝在一個標準的3.2 x 2.5mm陶瓷封裝中。這些緊湊的晶體是理想的表面安裝在密集或小形狀因子PCB應用。堅固的AT-cut晶體結構微型3.2x2.5毫米陶瓷包裝可在帶和卷；8毫米帶，3000單位每卷無pb和RoHS/綠色兼容。GSM，CDMA，GPR，Spcmcia卡，便攜式/手持個人電腦，筆記本電腦，硬盤，GPS，藍牙，無線局域網，UWB， ZigBee，數字調諧器。

DIODES-FL1000008-10MHz-20PPM-12PF--40°C ~ 85°C

Parameters Minimum Typical Maximum Units
頻率   10.000   MHz
操作模式 Fundamental
工作溫度 - 40   +85 ºC
儲存溫度 --40   +125 ºC
頻率容差 @+25°C --20   +20 ppm
工作溫度下的頻率穩定性 ( ref. to +25°C) --20   +20 ppm
并聯電容 (C0)     5 pF
   負載電容 (CL)
8 ~ 32或系列共振
 pF
驅動電平   10 100 µW
老化 --5   +5  ppm

DIODES-FL1000008-10MHz-20PPM-12PF--40°C ~ 85°C

Diodes零件編號 制造商 系列 頻率 頻率穩定性 頻率容差 負載電容
FL2500123Z Diodes晶振 FL 25 MHz ±50ppm ±30ppm 20pF
FL1200112 Diodes晶振 FL 12 MHz ±30ppm ±30ppm 18pF
FL2500316Z Diodes晶振 FL 25 MHz ±20ppm ±20ppm 20pF
FL2400022 Diodes晶振 FL 24 MHz ±10ppm ±10ppm 10pF
FL2500133 Diodes晶振 FL 25 MHz ±20ppm ±20ppm 18pF
FL4000157Z Diodes晶振 FL 40 MHz ±10ppm ±7ppm 15pF
FL2500213Z Diodes晶振 FL 25 MHz ±20ppm ±20ppm 20pF
FL2400097 Diodes晶振 FL 24 MHz ±15ppm ±10ppm 9pF
FL1600087 Diodes晶振 FL 16 MHz ±15ppm ±15ppm 20pF
FL2000038 Diodes晶振 FL 20 MHz ±10ppm ±10ppm 16pF
FL2500283Z Diodes晶振 FL 25 MHz ±30ppm ±30ppm 20pF
FL2400135Z Diodes晶振 FL 24 MHz ±30ppm ±30ppm 18pF
FL3840006 Diodes晶振 FL 38.4 MHz ±10ppm ±10ppm 10pF
FL2000059 Diodes晶振 FL 20 MHz ±10ppm ±10ppm 9pF
FL2500047 Diodes晶振 FL 25 MHz ±20ppm ±20ppm 18pF
FL4000205Z Diodes晶振 FL 40 MHz ±10ppm ±10ppm 10pF
FL1920031 Diodes晶振 FL 19.2 MHz ±10ppm ±10ppm 8.5pF
FL2700102Z Diodes晶振 FL 27 MHz ±30ppm ±30ppm 12pF
FL400WFQA1 Diodes晶振 FL 40 MHz ±10ppm ±10ppm 7pF
FL260WFMR1 Diodes晶振 FL 26 MHz ±10ppm ±10ppm 9pF
FL1200060 Diodes晶振 FL 12 MHz ±30ppm ±30ppm 18pF
FL2400041 Diodes晶振 FL 24 MHz ±30ppm ±30ppm 18pF
FL1600080 Diodes晶振 FL 16 MHz ±10ppm ±10ppm 10pF
FL3200022 Diodes晶振 FL 32 MHz ±10ppm ±10ppm 16pF
FL2400067 Diodes晶振 FL 24 MHz ±20ppm ±20ppm 18pF
FL2500137Z Diodes晶振 FL 25 MHz ±30ppm ±30ppm 20pF
FL1600043 Diodes晶振 FL 16 MHz ±10ppm ±10ppm 9pF
FL1200135 Diodes晶振 FL 12 MHz ±50ppm ±30ppm 18pF
FL4800063Z Diodes晶振 FL 48 MHz ±15ppm ±10ppm 8pF
FL1000002 Diodes晶振 FL 10 MHz ±25ppm ±25ppm 12pF
FL2400072 Diodes晶振 FL 24 MHz ±30ppm ±30ppm 18pF
FL2000132Z Diodes晶振 FL 20 MHz ±30ppm ±30ppm 12pF
FL2600177Z Diodes晶振 FL 26 MHz ±20ppm ±10ppm 10pF
FL3840015Z Diodes晶振 FL 38.4 MHz ±10ppm ±10ppm 10pF
FL2400081 Diodes晶振 FL 24 MHz ±30ppm ±30ppm 18pF
FL1200138 Diodes晶振 FL 12 MHz ±50ppm ±15ppm 8pF
FL400WFMR1 Diodes晶振 FL 40 MHz ±10ppm ±10ppm 10pF
FL3200037 Diodes晶振 FL 32 MHz ±15ppm ±15ppm 8pF
FL3000027 Diodes晶振 FL 30 MHz ±10ppm ±10ppm 20pF
FL1600044 Diodes晶振 FL 16 MHz ±15ppm ±15ppm 8pF
FL2500279Z Diodes晶振 FL 25 MHz ±30ppm ±30ppm 12pF
FL3200038Z Diodes晶振 FL 32 MHz ±10ppm ±10ppm 10pF
FL1220027Q Diodes晶振 FL 12.288 MHz ±20ppm ±20ppm 12pF
FL0800021 Diodes晶振 FL 8 MHz ±30ppm ±20ppm 8pF
FL1000008 Diodes晶振 FL 10 MHz ±20ppm ±20ppm 12pF
FL1200055 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 8pF
FL1200171 Diodes晶振 FL 12 MHz ±10ppm ±10ppm 10pF
FL1200231 Diodes晶振 FL 12 MHz ±20ppm ±10ppm 15pF
FL1200232 Diodes晶振 FL 12 MHz ±20ppm ±10ppm 10pF
FL1220019 Diodes晶振 FL 12.288 MHz ±20ppm ±20ppm 18pF
FL1430041 Diodes晶振 FL 14.31818 MHz ±20ppm ±20ppm 18pF
FL1600175 Diodes晶振 FL 16 MHz ±15ppm ±10ppm 12pF
FL2000171 Diodes晶振 FL 20 MHz ±20ppm ±10ppm 12pF
FL2000182 Diodes晶振 FL 20 MHz ±20ppm ±10ppm 18pF
FL2400240 Diodes晶振 FL 24 MHz ±25ppm ±10ppm 12pF
FL2450059 Diodes晶振 FL 24.576 MHz ±20ppm ±10ppm 12pF
FL2450063 Diodes晶振 FL 24.576 MHz ±15ppm ±10ppm 15pF
FL2500284 Diodes晶振 FL 25 MHz ±30ppm ±30ppm 18pF
FL2500292 Diodes晶振 FL 25 MHz ±20ppm ±20ppm 12pF
FL2500437 Diodes晶振 FL 25 MHz ±30ppm ±20ppm 18pF
FL2500445 Diodes晶振 FL 25 MHz ±20ppm ±20ppm 20pF
FL2500495 Diodes晶振 FL 25 MHz ±15ppm ±10ppm 12pF
FL2600121 Diodes晶振 FL 26 MHz ±15ppm ±10ppm 18pF
FL2600224 Diodes晶振 FL 26 MHz ±30ppm ±10ppm 9pF
FL2700144 Diodes晶振 FL 27 MHz ±20ppm ±20ppm 10pF
FL3840027 Diodes晶振 FL 38.4 MHz ±20ppm ±20ppm 12pF
FL3840035 Diodes晶振 FL 38.4 MHz ±10ppm ±10ppm 9pF
FL3840036 Diodes晶振 FL 38.4 MHz ±10ppm ±10ppm 9pF
FL3840037 Diodes晶振 FL 38.4 MHz ±10ppm ±10ppm 10pF
FL4000296 Diodes晶振 FL 40 MHz ±20ppm ±10ppm 15pF
FL4000300 Diodes晶振 FL 40 MHz ±30ppm ±10ppm 12pF
FL4000303 Diodes晶振 FL 40 MHz ±25ppm ±10ppm 12pF
FL1200217 Diodes晶振 FL 12 MHz ±20ppm ±10ppm 12pF
FL1840006 Diodes晶振 FL 18.432 MHz ±20ppm ±20ppm 15pF
FL1840007 Diodes晶振 FL 18.432 MHz ±20ppm ±20ppm 18pF
FL3000037 Diodes晶振 FL 30 MHz ±30ppm ±30ppm 10pF
FL2500281 Diodes晶振 FL 25 MHz ±50ppm ±20ppm 18pF
FL1100001 Diodes晶振 FL 11.0592 MHz ±20ppm ±20ppm 18pF
FL1100002 Diodes晶振 FL 11.0592 MHz ±30ppm ±20ppm 20pF
FL1100007 Diodes晶振 FL 11.0592 MHz ±50ppm ±20ppm 12pF
FL1200044 Diodes晶振 FL 12 MHz ±30ppm ±30ppm 18pF
FL1200046 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 18pF
FL1200048 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 18pF
FL1200050 Diodes晶振 FL 12 MHz ±30ppm ±30ppm 20pF
FL1200051 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 18pF
FL1200053 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 12pF
FL1200059 Diodes晶振 FL 12 MHz ±10ppm ±10ppm 8pF
FL1200061 Diodes晶振 FL 12 MHz ±9ppm ±9ppm 10pF
FL1200062 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 10pF
FL1200063 Diodes晶振 FL 12 MHz ±30ppm ±30ppm 10pF
FL1200068 Diodes晶振 FL 12 MHz ±10ppm ±10ppm 9pF
FL1200074 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 20pF
FL1200075 Diodes晶振 FL 12 MHz ±20ppm ±20ppm 12pF
